Written by Andrea Fields MHA, RDCS

Correct Techniques to Acquire Diastology Measurements

This week we are kicking off the diastolic function guideline series, hosted by our guest blog writer Michael Owen! But first, we need to cover the basics on ‘how-to‘ acquire the measurements needed to evaluate for diastolic function.

The measurements needed to evaluate diastolic function include: pulsed-wave (PW) Doppler of mitral valve inflow, tissue Doppler imaging (TDI) and pulmonary veins, left atrial (LA) volume index, tricuspid regurgitation (TR) Doppler velocity and left ventricle (LV) ejection fraction (EF). Luckily, we have covered a few of these items in our past blogs!

Mitral Valve Inflow:

The first group of measurements come from performing PW Doppler at the mitral valve leaflet tips. The following measurements can be obtained from this waveform:

  1. Peak E-Wave Velocity (cm/s)
  2. Peak A-Wave Velocity (cm/s)
  3. A-Duration (msec)
  4. E/A Ratio
  5. Deceleration Time (msec)

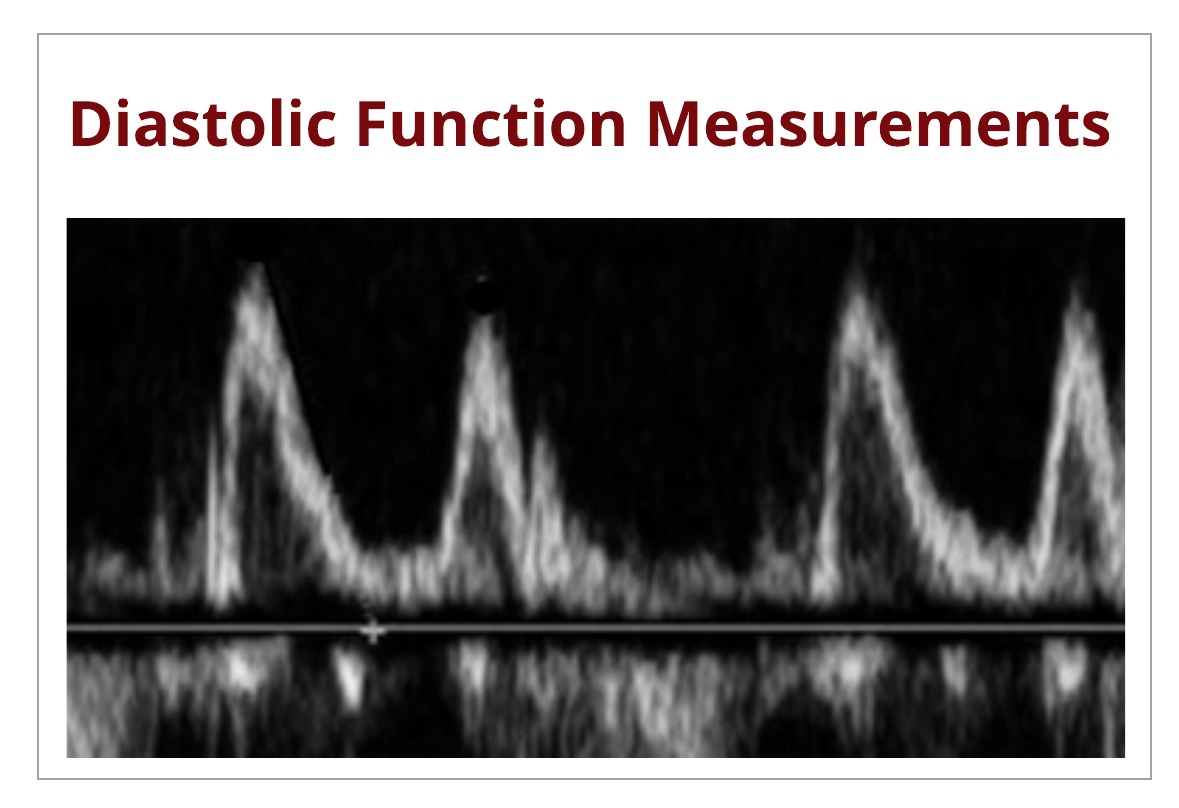

How to Obtain Mitral Valve Inflow WaveformMitral Valve Pulsed Wave Doppler Inflow

  • Apical 4 chamber
  • Pulsed-wave Doppler
  • Sample volume between mitral valve leaflet tips
  • Low wall-filter

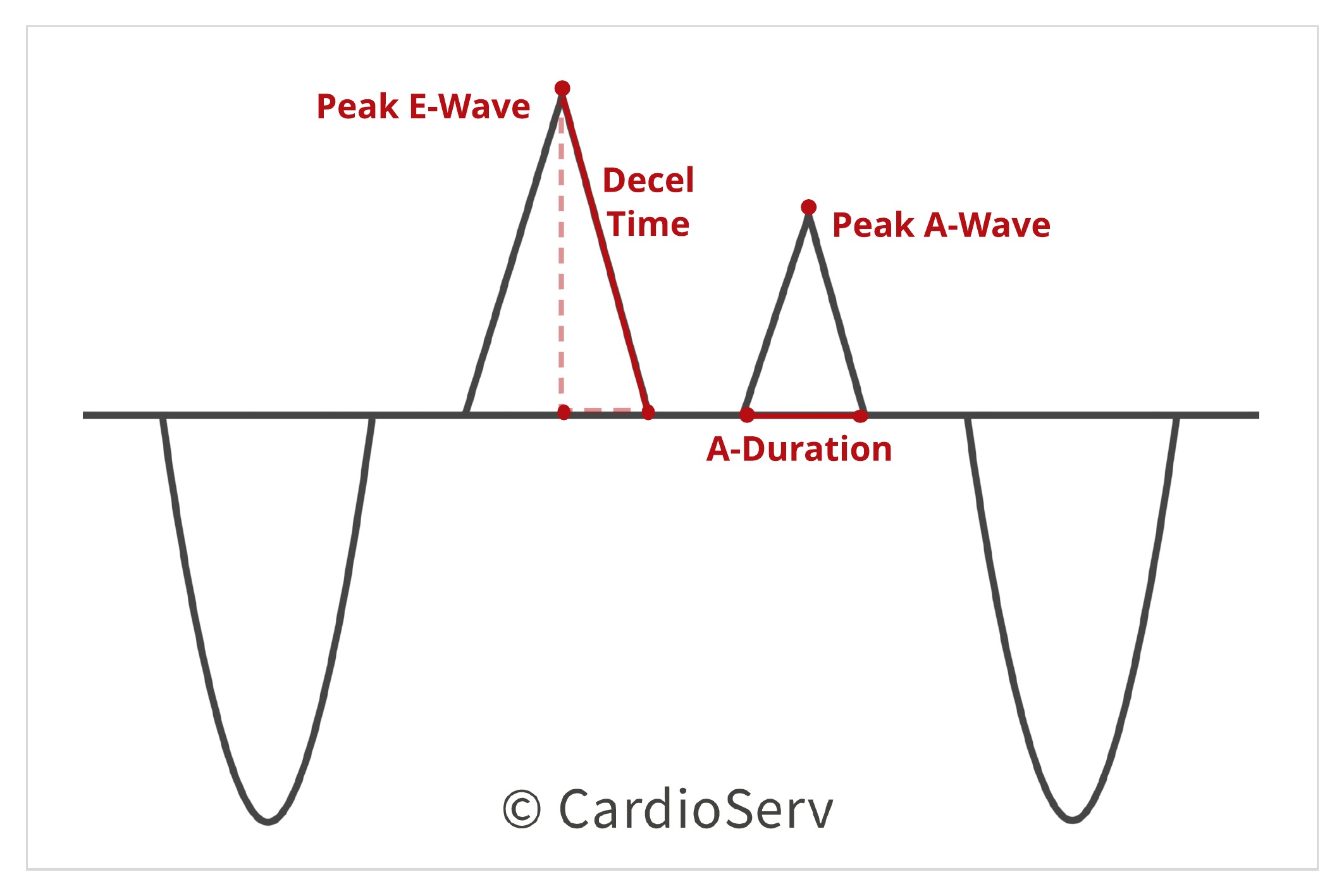

Mitral Valve Inflow Measurements

Mitral Valve Inflow Pulsed Wave Doppler Measurements

Peak E-Wave Velocity (cm/sec)

  • Peak modal velocity
  • Early diastole (after T-wave on EKG)
  • Leading edge of waveform

Peak A-Wave Velocity (cm/sec)

  • Peak modal velocity
  • Late diastole (after P-wave on EKG)
  • Leading edge of waveform

A-Duration (msec)

  • Time interval measurement
  • Onset to end of A-wave along baseline

E/A Ratio

  • E-wave velocity divided by A-wave velocity

Deceleration Time (msec)

  • Time interval measurement
  • Peak E-wave along slope of LV filing extrapolated to zero-velocity baseline

PW Tissue Doppler Imaging:

Next we need to evaluate the septal and lateral e’ velocity using PW tissue Doppler imaging (TDI)! Using this, we can obtain the following measurements:

  1. e’ Velocity septal/medial and lateral (cm/sec)
  2. Average E/e’

How to Obtain PW TDI WaveformPulsed Wave Doppler Tissue Doppler Imaging Diastolic Function Waveforms

  • Apical 4 chamber
  • PW Doppler TDI
  • Sample volume on septal and lateral basal regions

PW Tissue Doppler Imaging MeasurementsPW TDI Diastolic Function Measurement

e’ Velocity (cm/sec)

  • Peak modal velocity
  • Early diastole
  • Leading edge of waveform
  • Adjust gains for Doppler signal appears sharp

Average E/e’

  • E-wave velocity divided by e’ velocity

Pulmonary Veins

Pulmonary Vein Waveform

Lucky for you, we already posted a blog on correct tips to obtaining pulmonary vein Doppler waveform! You can review it here! The measurements needed from the pulmonary vein waveform for evaluation of diastolic function include:

  1. S-Wave (cm/sec)
  2. D-Wave (cm/sec)
  3. AR Duration (msec)
  4. S/D Ratio

Pulmonary Vein Measurements pulmonary vein measurement

S-Wave Velocity (cm/sec)

  • Peak modal velocity
  • Early systole
  • Leading edge of spectral waveform

D-Wave Velocity (cm/sec)

  • Peak modal velocity
  • Early diastole after MV opening
  • Leading edge of spectral waveform

AR Duration (msec)

  • Time interval
  • AR-wave onset to end of AR at zero baseline

S/D Ratio

  • S-wave divided by D-wave velocity or
  • S-wave VTI divided by D-wave VTI

Left Atrium SizeLeft Atrial Volume Index

We also need to evaluate the left atrium volume, indexed to BSA (LAVI)! We have a blog written on this already- you can check it out here!

Left Ventricle Ejection Fraction LV Ejection Fraction Simpson's Biplane

You can view the blog over proper method to performing LV bi-plane measurement to determine volumes and ejection fraction here!

Tricuspid Regurgitation Tricuspid Regurgitation Velocity

The last measurement we must have in order to evaluate for diastolic function is the tricuspid regurgitation (TR) velocity gradient! You can find out how-to guide from our right heart quantification blog series, here!

Summary

Now that we have covered the basic assessment of measurements, we’re ready to dive into how to apply these towards determining diastolic function!

Andrea Fields MHA, RDCS

Stay Connected: LinkedInFacebookTwitterInstagram







References:

Nagueh, S. F., MD, Smiseth, O. A., MD, & Appleton, C. P., MD. (2016). Recommendations for the Evaluation of Left Ventricular Diastolic Function by Echocardiography: An Update from the American Society of Echocardiography and European Association of Cardiovascular Imaging. American Society of Echocardiography, 29(4), 277-314. Retrieved October 31, 2017, from http://asecho.org/wordpress/wp-content/uploads/2016/03/2016_LVDiastolicFunction.pdf
